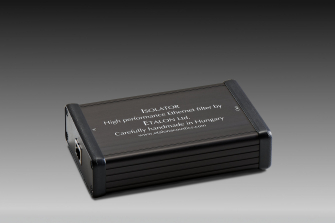

ETALON ISOLATOR



Ethernet noise filter – the electronic cleaner



Being connected into any LAN-network, it removes all unavoidable electronic noise-signals present in this network, enabling highest quality data handling in the system.



EUR 390. Click 'Shop' to buy online.

Technical data:

In- and output: LAN

Size: 125 x 30 x 80 mm (W x H x D)

Mass: 0,6 kg

Changes may be made without prior notice!

-------------------------------------------------------------------------------------------------------------------------

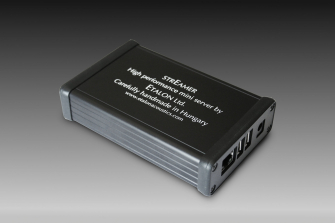

ETALON STREAMER Media Server



Entering the world of high quality streaming



This Etalon model is a mini-PC, using our own developed software, selecting and playing different multimedia music programmes.



EUR 720. Click 'Shop' to buy online.

The source of such music programmes can be either Internet, or any network component where such material is stored: NAS, PC, laptop, tablet, smartphone, USB-storage, etc. All widely used formats and media-player software are accepted, most of all DLNA, Roon, Logitech, JRiver, Bubble UPnP or Airplay.

When purchased, the registered user will get access to the control panel via Internet, where all control functions can be set individually. The output of the unit should be connected to any usual DAC with USB-input.



Technical data:

Mains voltage: 115, 125, or 230V, max. 5VA together with supplied PSU

Inputs: Ethernet or high-speed USB

Compatible formats: PCM 16 – 32 bit 44,1 – 384 kHz, DSD 64, 128

Output: high-speed USB

Size: 125 x 30 x 80 mm (W x H x D)

Mass: 0,6 kg

Changes may be made without prior notice!

 --------------------------------------------------------------------------------------------------------------------------

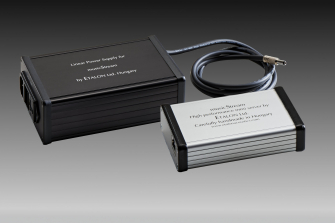

ETALON MUSICSTREAM Media Server



The highest level of quality streaming



EUR 2,490



Please email sales@etalon-shop.com for a quote and shipping costs.

This Etalon model represents the top quality of our STREAMER as a mini-PC, running our own developed software, selecting and playing different multimedia music programmes at highest quality level. The source of such music programmes can be either Internet, or any network component where such material is stored: NAS, PC, laptop, tablet, smartphone, USB-storage, etc. All widely used formats and media-player software are accepted, most of all DLNA, Roon, Logitech, JRiver, Bubble UPnP or Airplay.

When purchased, the registered user will get access to the control panel via Internet, where all control functions can be set individually. The output of the unit should be connected to any usual DAC with USB-input. There is a separate linear power supply unit included.



Technical data:

Mains voltage: 115, 125, or 230V, max. 5VA together with supplied LPSU

Inputs: Ethernet or high-speed USB

Compatible formats: PCM 16 – 32 bit 44,1 – 384 kHz, DSD 64, 128

Output: high-speed USB

Size: 125 x 30 x 80 mm (W x H x D)

Mass: 0,6 kg

Size LPSU: 250 x 60 x 120 mm (W x H x D)

Mass LPSU: 1,6 kg

Changes may be made without prior notice!

-----------------------------------------------------------------------------------------------------------------------------

Image Placeholder

ETALON SUPRAFONO phono MM-preamplifier



David among Goliats



From EUR 1,200



Please email sales@etalon-shop.com for a quote and shipping costs.

SUPRAFONO is designed to be used with any standard MM-cartridge. It has separate linear power supply and stereo outputs to be connected to any type of voltage-input power amplifier. Due to its small size it can be placed directly at or close to the turntable, enabling short input cable, transporting noise-sensitive low-level signals.



Technical data:

Mains voltage: 115, 125, or 230V, max. 50VA together with supplied L PSU

Input: max. 5 mV/47 kohm MM-cartridge loading

Gain: 34 dB +/- 0,2 dB at 1 kHz, RIAA response +/- 0,5 dB

Output load: not less than 1 kohm

Size: 125 x 30 x 80 mm (W x H x D)

Mass: 0,6 kg

Size PSU: 250 x 60 x 120 mm (W x H x D)

Mass PSU: 1,6 kg

Changes may be made without prior notice!

-----------------------------------------------------------------------------------------------------------------------------

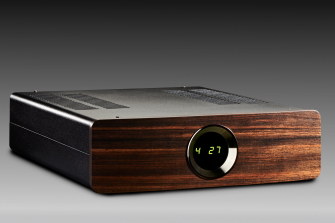

ETALON SUPRA Integrated Amplifier



The “Volkswagen” of amplifiers



From EUR 2,490



Please email sales@etalon-shop.com for a quote and shipping costs.

Resulting from extensive research work over several decades aiming to create the most simple and highest quality designs, SUPRA is a push-pull, class-AB power amplifier with maximum 4 line-level voltage type inputs and voltage-output. Recommended for general application, it can also be used with loudspeakers not made by Etalon. IR remote controlled volume and input selector functions. As a special option, the control software can be modified, so that one of the 4 possible inputs can be converted into „record output” in order to drive other components in parallel from the same source activated by the input selector. Black metal cabinet with wood front options.



Technical data:

Mains voltage: 115, 125, or 230V, max. 200VA

Inputs: min. 250 mV/10 kohm, line-level unbalanced

Gain: 34 dB +/- 0,2 dB at 1 kHz

Volume control: 0 – 63 dB, in 1 dB steps at 0,1dB accuracy

Output power: 70W/ 4 ohm

Output load: not less 4 ohm

Size: 364 x 104 x 440 mm (W x H x D)

Mass: 16 kg

Changes may be made without prior notice!

Colour shown: Ebony Natural, other colours can be made to order.

-----------------------------------------------------------------------------------------------------------------------------

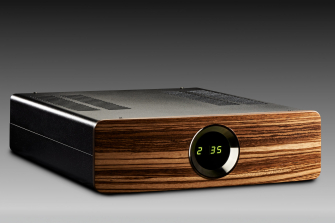

ETALON SUPRADAC Digital Preamplifier



The neutral precision



From EUR 3,310



Please email sales@etalon-shop.com for a quote and shipping costs.

Resulting from extensive research work over several decades aiming to create the most simple and highest quality designs, together with our experience collected in digital music recordings we completely redesigned our earlier models. Our new stereo digital preamplifier has USB and optical S/PDIF inputs, unbalanced analog both current- and voltage-outputs which can drive the power amplifier directly. IR remote controlled volume and coaxial S/PDIF input are optional. Black metal cabinet with wood front options.



Technical data:

Mains voltage: 115, 125, or 230V, max. 50VA

Digital inputs: high speed USB, coaxial (optional) and optical S/PDIF

Compatible formats: PCM 16 – 32 bit 44,1 – 384 kHz, DSD 64, 128

Volume control: 0 – 63 dB, in 1 dB steps at 0,1dB accuracy (optional)

Analog outputs: min. 2 V/1 kohm, line-level unbalanced current- and voltage output

Output load: any value

Size: 364 x 104 x 440 mm (W x H x D)

Mass: 12 kg

Changes may be made without prior notice!

Colour shown: Zebrano Natural, other colours can be made to order.

-----------------------------------------------------------------------------------------------------------------------------

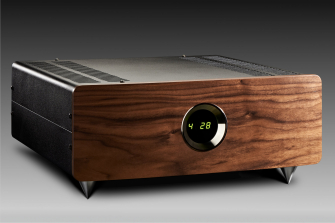

ETALON CLASSA Integrated Amplifier



Removing the dogmas of electronics



From EUR 7,200



Please email sales@etalon-shop.com for a quote and shipping costs.

Designed as a push-pull, pure class-A power amplifier with maximum 4 line-level voltage type inputs and current-output, recommended to be used primarily with Etalon-made loudspeakers. IR remote controlled volume and input selector functions. As a special option, the control software can be modified, so that one of the 4 possible inputs can be converted into „record output” in order to drive other components in parallel from the same source activated by the input selector.  Black metal cabinet with wood front options. It is an ideal partner for our ENTRÉE loudspeaker system.



Technical data:

Mains voltage: 115, 125, or 230V, max. 200VA

Inputs: min. 250 mV/10 kohm, line-level unbalanced

Gain: 34 dB +/- 0,2 dB at 1 kHz

Volume control: 0 – 63 dB, in 1 dB steps at 0,1dB accuracy

Output power: 8W/ 4 ohm

Output load: any value

Size: 444 x 194 x 440 mm (W x H x D)

Mass: 26 kg

Changes may be made without prior notice!

Colour shown: Ebony Natural, other colours can be made to order.

-----------------------------------------------------------------------------------------------------------------------------

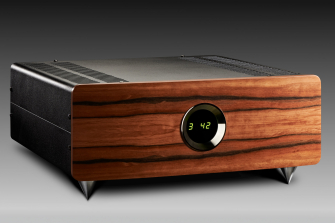

ETALON INTEGRA Integrated Amplifier



The older brother that always helps



From EUR 8,400



Please email sales@etalon-shop.com for a quote and shipping costs.

Resulting from extensive research work over several decades aiming to create the most simple and highest quality designs, INTEGRA is a push-pull, class-AB power amplifier, a higher power version of SUPRA. It has maximum 4 line-level voltage type inputs and voltage-output. Recommended for general application, it can also be used with loudspeakers not made by Etalon. IR remote controlled volume and input selector functions. As a special option, the control software can be modified, so that one of the 4 possible inputs can be converted into „record output” in order to drive other components in parallel from the same source activated by the input selector.  Black metal cabinet with wood front options.



Technical data:

Mains voltage: 115, 125, or 230V, max. 200VA

Inputs: min. 250 mV/10 kohm, line-level unbalanced

Gain: 34 dB +/- 0,2 dB at 1 kHz

Volume control: 0 – 63 dB, in 1 dB steps at 0,1dB accuracy

Output power: 150W/ 4 ohm

Output load: not less 4 ohm

Size: 444 x 194 x 440 mm (W x H x D)

Mass: 26 kg

Changes may be made without prior notice!

Colour shown: Indian Apple Natural, other colours can be made to order.

-----------------------------------------------------------------------------------------------------------------------------

Image Placeholder

ETALON SUMMA Two-way Amplifier System



The one-man orchestra



Product coming soon!



Please email sales@etalon-shop.com for a quote and shipping costs.

Developed for exclusive use with our speaker systems EUFORIA and/or MIRACULUM. The wide-range unit of the speaker system is driven by a current-input, current-output pure class-A single ended power amplifier section. The separate sub-bass unit is supplied by a pure class-A, push-pull type voltage-input, current-output power amplifier. The relative level of both amplifier channels can be set individually by RC handset, so that the loudness of the bass unit can be adjusted exactly in 1 dB steps in order to match the bass-response of the listening room. The master volume can also be controlled by the IR handset.

There is a common source equipment as integrated digital preamplifier housed in the same cabinet. It has Ethernet and USB inputs, but optional there are maximum 3 line-level analog and S/PDIF inputs available. All functions are IR remote controlled. The wood cabinet in timeless design is available in a variety of wood finish options.



Technical data:

Mains voltage: 115, 125, or 230V, max. 300VA

Analog inputs: min. 2 V/1 kohm, line-level unbalanced current input

Digital inputs: Ethernet, high speed USB, coaxial and optical S/PDIF

Compatible formats: PCM 16 – 32 bit 44,1 – 384 kHz, DSD 64, 128

Volume control: 0 – 63 dB, in 1 dB steps at 0,1dB accuracy

Output power: matching the loudspeaker systems Euforia and Miraculum

Output load: any value

Size: 440 x 560 x 440 mm (W x H x D)

Mass: 46 kg

Changes may be made without prior notice!

-----------------------------------------------------------------------------------------------------------------------------

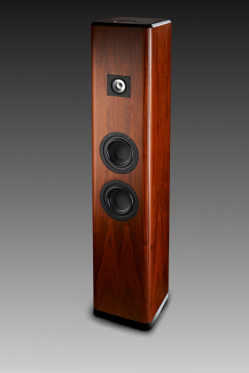

ETALON ENTRÉE Loudspeaker System



Music for everyone



From EUR 6,960 per pair



Please email sales@etalon-shop.com for a quote and shipping costs.

This model is developed for general music reproduction as a floor-standing 2-way system. Due to the customized high-quality driver units made for us by EAD, the usual crossover circuitry could be omitted. This design architecture has significantly improved sound quality compared to the usual, conventional designs, which can be detected immediately when listening to music. The accuracy of impulse-reproduction and the resolution of micro details both in time-domain and space are exceptional. ENTRÉE can be used both with voltage-output and current-output power amplifiers. Should be placed in a free space in the room. Depending on the acoustic properties of the room, it can be used in rooms up to about 30 sqm.



Technical data:

Nominal impedance: 4 ohm

Nominal power handling: 40 W

Bass unit: 2 pcs carbon fibre composite cone

Wide-range unit: 1 pc metal composite cone

Size: 1030 x 240 x 240 mm (H x W x D)

Mass: 28 kg

Changes may be made without prior notice!

-----------------------------------------------------------------------------------------------------------------------------

Image Placeholder

ETALON EUFORIA Loudspeaker System



Only for demanding listeners



Product coming soon!



Please email sales@etalon-shop.com for a quote and shipping costs.

This model is dedicated to satisfy the highest expectations for sound quality. It is a floor-standing 2-way, 4-cabinets stereo system without a crossover unit. Due to the customized high-quality driver units made for us by EAD, the usual crossover circuitry could be omitted. This design architecture has significantly improved sound quality compared to the usual, conventional designs, which can be detected immediately when listening to music. The accuracy of impulse-reproduction and the resolution of micro details both in time-domain and space are exceptional. It must be used exclusively with Etalon-made current-output power amplifiers only. Depending on the acoustic properties of the room, we recommend it for rooms up to about 60 sqm. The wide-range unit should be placed in a free space, the sub-bass unit can be placed anywhere in the room.



Technical data:

Nominal impedance wide-range unit: 2 ohm

Nominal impedance bass unit: 8 ohm

Nominal power handling wide-range unit: 20 W

Nominal power handling bass unit: 80 W

Bass unit: 1 pc metal composite cone

Wide-range unit: 2 pcs metal composite cone

Size wide-range unit: 1220 x 200 x 200 mm (H x W x D)

Size bass unit: 500 x 500 x 500 mm (H x W x D)

Mass wide range unit: 32 kg

Mass bass unit: 35 kg

Changes may be made without prior notice!

-----------------------------------------------------------------------------------------------------------------------------

Image Placeholder

ETALON MIRACULUM Loudspeaker System



Designed for individual demand



Product coming soon!



Please email sales@etalon-shop.com for a quote and shipping costs.

This model will be designed individually to meet the personal expectations of the listener. Due to the customized high-quality driver units made for us by EAD, the usual crossover circuitry could be omitted. This design architecture has significantly improved sound quality compared to the usual, conventional designs, which can be detected immediately when listening to music. The accuracy of impulse-reproduction and the resolution of micro details both in time-domain and space are exceptional. It must be used exclusively with Etalon-made current-output power amplifiers only. Depending on the acoustic properties of the room, we recommend it for rooms of at least 60 sqm. The wide-range unit should be placed in a free space, the sub-bass unit can be placed anywhere in the room. In-wall or on-wall architecture for the wide-range unit is optional.



Technical data:

Nominal impedance wide-range unit: 1 ohm

Nominal impedance bass unit: 2 ohm or less

Nominal power handling wide-range unit: 40 W

Nominal power handling bass unit: 320 W

Bass unit: 4 pcs or more metal composite cone

Wide-range unit: 4 pcs metal composite cone

Size wide-range unit: depends on individual design

Size bass unit: depends on individual design

Mass wide range unit: depends on individual design

Mass bass unit: depends on individual design

Changes may be made without prior notice!

-----------------------------------------------------------------------------------------------------------------------------
